What we do
Starters, Generators and BRM - 48V
Solutions for Passenger, Commercial and Off-road vehicles.
Light Electric Mobility solutions.
E-Bike motors
The wide portfolio of SEG Automotive products covers the most diverse worldwide requirements of our customers - from the basic segment to premium applications.
Whether your goal is full electrification or cost-efficient optimization of fleet consumption to meet CO2 regulations, we have the right e-machine for you – from powerful e-bike/pedelec motors to drives for light electric vehicles and machines for passenger cars to heavy commercial vehicles.
We also offer vehicle manufacturers an efficient and highly cost-effective entry into the world of hybridization with our 48V e-machines. These e-machines have one thing in common: Their powerful 48V on-board power supply does not require the expensive architecture of a high-voltage powertrain, making them cost-effective and easy to implement.

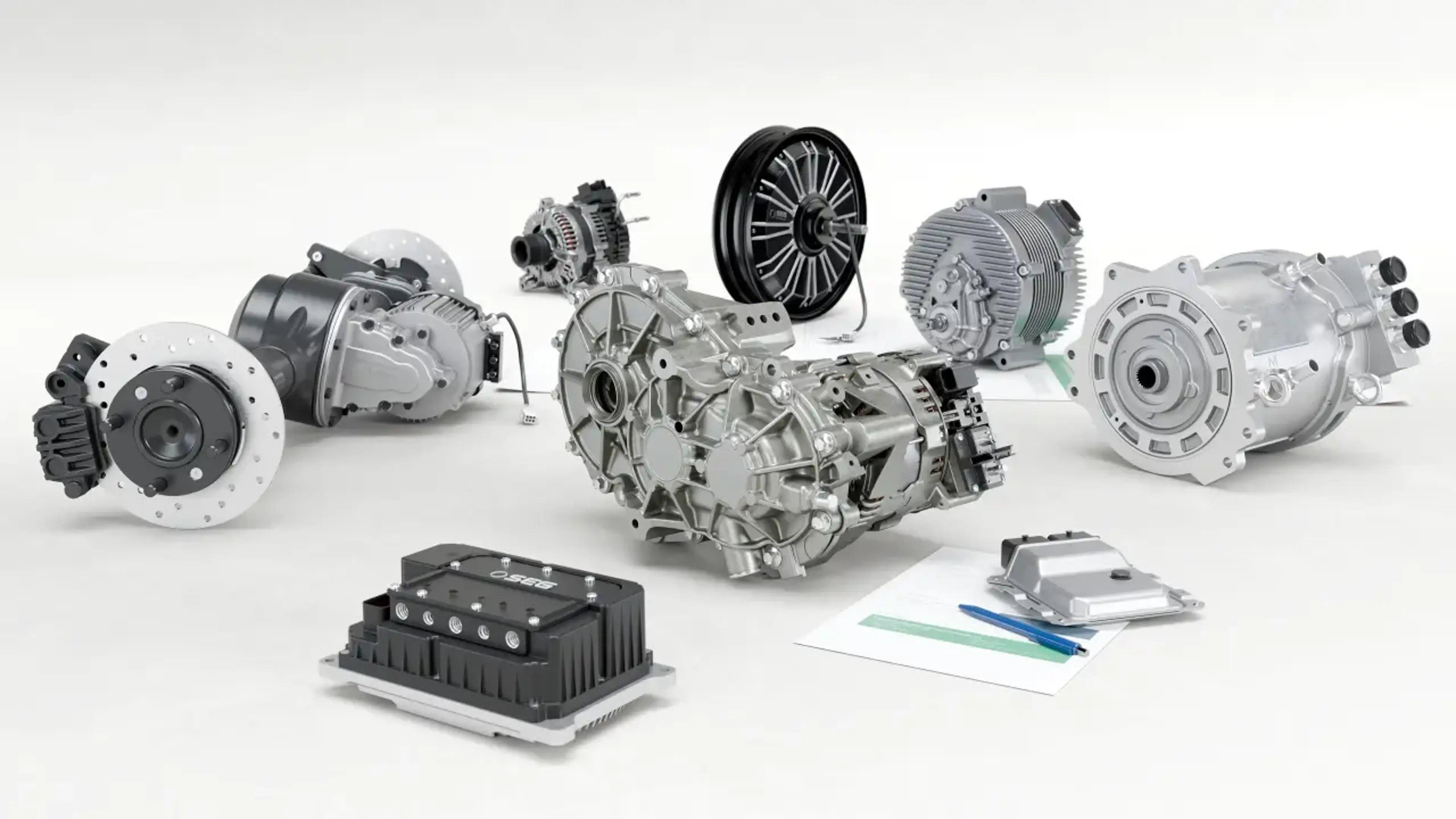

Products overview
Alternators
Beginning with the starter motor and engine control unit, an increasing number of electrical consumers are supplied via the vehicle's electrical system. These include not only the entertainment or navigation systems, but also safety features, such as ABS, ESP, sensors and safety assistants.
Our alternators reliably supply the many electric consumers and safety features in modern cars with energy – including your lights, ESP, and air conditioning. With their outstanding efficiency, they greatly contribute to reducing CO2 emissions and fuel.
At Treto we are manufacturers of all types of alternators, both for passenger cars and for all types of commercial vehicles.
Boost Recuperation Machine 48V
Lower fuel consumption and emissions with easy implementation in existing vehicle platforms: That's what makes 48V mild hybrids so interesting in the transition phase to e-mobility.
Our Boost Recuperation Machine (BRM) transforms any conventional internal combustion engine into an efficient light hybrid with minimal effort: replacing the 12V alternator with the 48V BRM.
The EU has officially recognized the BRM as an eco-innovation, which enables manufacturers to receive additional CO2 credit and further reduce their fleet consumption.
- Up to 15% reduction in fuel consumption and CO2 emissions (real world driving conditions)
- 48V power supply high-performance consumers (e.g. roll stabilizer, electronic brake booster etc.)
- Recuperation of braking energy, boost and comfort start function for extremely smooth start/stop operations
- Coasting at high speeds with the engine turned off
- Redundancy by additional 48V electrical system for autonomous driving safety requirements
eBike motor
The e-bike engine is the latest development initiated by SEG Automotive. Developed to the highest automotive standards, allows us to offer our customers a quiet and lightweight product with customizable software.
- Unlimited boost modes (0-400%).
- Weight: 2,5 kg
- Torque: > 85Nm
- Power: 250W (500W peak)
- Noise: < 52dBs (tbc)
- 85 Nm maximum torque
- Assistance up to 135 rpm’s cadence
- Range 90 km (battery: 720Wh)
- Q-Factor (pedelec shaft 138 mm)
- Ad-hoc design
- Customizable software
- Integrated Printed Circuit Board Assembly (PCBA)

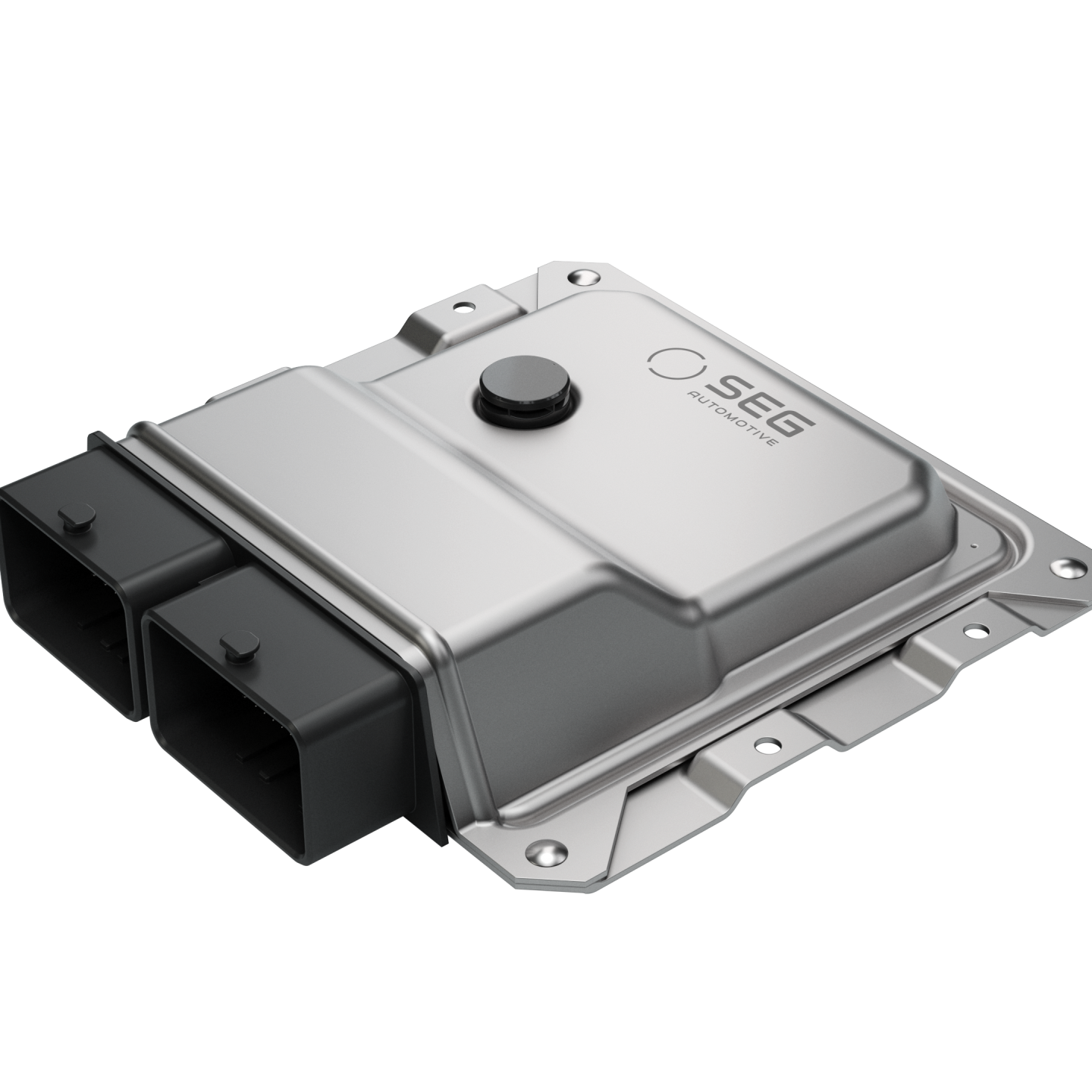

Vehicle Control Unit
In order to expand the application range of 48V systems and reduce complexity and integration efforts for our customers, SEG Automotive has developed the Vehicle Control Unit (VCU) targeting the light electric mobility with a wide application spectrum from 2-wheelers (L1e) to 4-wheelers (L7e) up to industrial and utility applications.
- Central vehicle control unit for all powertrain and vehicle functions
- Designed for all LEM applications
- Calculates and distributes torque request to the BRM/controllers
- Communication with other components via CAN/CAN-FD
- Several integrated and optional functions
- Complete inhouse SW/HW - can be tailored
- Dimensions (approx.): 160x160x40mm
- Weight (approx.): 300gr
- Housing (upper + lower covers): Aluminum sheet (AlMg3)
- Pressure Compensation Element (PCE)
- Lockable 2-pocket connector (120 pins: 65 + 55)
- Made in EU
Boost Recuperation Machine (BRM) eDrive
The e-drive systems from SEG Automotive are compact and can propel any light vehicles very efficiently.
- Integrated Inverter
- Innovative design for easy integration
- Compact packaging
- Highest power density
- 88% overall efficiency
- Save shut-off features
- UDS and re-flashing capable
- CAN(-FD) torque control
- Air-cooled system
